Transformer Silica Gel Breather Guide – DTO Models, Selection & Applications

Transformer silica gel breathers prevent moisture ingress into transformer conservators, gearboxes, storage tanks and oil-filled equipment. This guide helps engineers and procurement teams select the correct breather based on transformer rating, oil volume, silica gel capacity and connection type.

A transformer silica gel breather is an essential accessory used in oil-filled transformers, OLTC compartments, storage tanks and industrial gearboxes. The breather prevents atmospheric moisture from entering the equipment and helps maintain transformer oil dielectric strength.

Seyon Enterprises manufactures and supplies DTO-1, DTO-2, DTO-3, DTO-4, DTO-5, DTO-6, DTO-7, DTO-8, DTO-9 and DTO-10 silica gel breathers with threaded BSP, NPT and flanged connections. Capacities range from 250 gm to 15 kg suitable for distribution transformers, power transformers and grid transformers.

Available options include blue indicating silica gel, orange indicating silica gel, polycarbonate body breathers, acrylic body breathers, oil cup assemblies and custom transformer breather replacements.

Contents

• What is a Transformer Breather?
• How Silica Gel Breathers Work
• DTO-1 to DTO-10 Models
• Detailed Technical Specification
• Transformer Sizing Chart
• BSP vs NPT Connections
• Threaded vs Flanged Breathers
• Applications
• Replacement Models
• FAQ

What is a Transformer Silica Gel Breather?

A silica gel breather removes moisture from incoming air before it enters the transformer conservator. Moisture contamination reduces dielectric strength and accelerates insulation ageing.

DTO Breather Models

Detailed Technical Specifications

DTO-1 Silica Gel Breather (250 gm)

DTO-1 silica gel breather is commonly used on 63 KVA, 100 KVA and 200 KVA distribution transformers. The compact design incorporates a transparent polycarbonate body for easy inspection of silica gel colour change and an oil cup that acts as a dust barrier. Available with 1/2 inch BSP and 3/4 inch BSP threaded connections.

Parameter	Specification
Silica Gel Capacity	250 gm approx.
Connection Size	1/2" BSP or 3/4" BSP
Body Material	Polycarbonate Tube with Die Cast Aluminium Top & Bottom
Overall Height	150 mm
Body Diameter	80 mm
Oil Cup	Transparent Polycarbonate
Suitable Transformer	63 KVA, 100 KVA & 200 KVA
Oil Volume	450 Litres

DTO-2 Silica Gel Breather (500 gm)

Parameter	Specification
Silica Gel Capacity	500 gm approx.
Connection Size	1/2", 3/4", 1" BSP
Body Material	UV Resistant Polycarbonate with Die Cast Aluminium
Overall Height	230 mm or 200mm
Body Diameter	80 mm or 120 mm
Oil Cup	Transparent Polycarbonate
Mounting	Threaded or Flanged
Transformer Rating	250 KVA to 500 KVA

DTO-2 500 gm silica gel breather with BSP threaded connection and transparent oil cup.

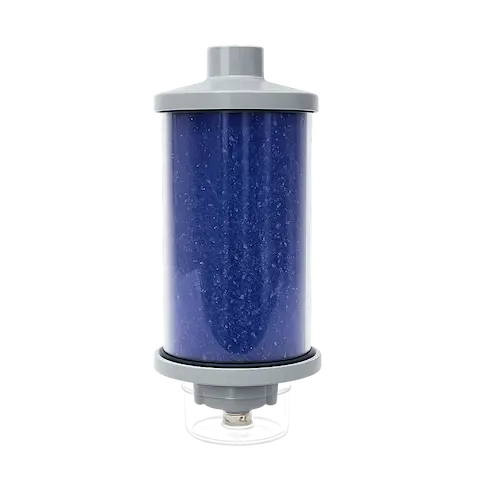

DTO-3 to DTO-4 Silica Gel Breather (1Kg to 2Kg)

Parameter	Specification
Silica Gel Capacity	1Kg to 2Kg.
Connection Size	1/2", 3/4", 1" BSP
Body Material	Acrylic body with Die Cast Aluminium Top & Bottom
Overall Height	270mm (1Kg), 320mm (1.5Kg), 420mm (2Kg)
Body Diameter	120 mm with 4mm wall thickness
Oil Cup	Transparent Polycarbonate
Mounting	Threaded or Flanged
Transformer Rating	2 MVA to 5 MVA

DTO-5 to DTO-9 Silica Gel Breather (4Kg to 10Kg)

Parameter	Specification
Silica Gel Capacity	4Kg to 10Kg.
Connection Size	1" BSP
Body Material	Acrylic body with Die Cast Aluminium Top & Bottom
Overall Height	375mm (4 Kg), 425mm (5 Kg), 475mm (6 Kg), 575mm (8 Kg), 675mm (10 Kg)
Body Diameter	200 mm with 4mm wall thickness
Oil Cup	Transparent Polycarbonate
Mounting	Flanged
Transformer Rating	8 MVA to 25 MVA

Transformer Rating vs Breather Capacity

BSP vs NPT Connections

Breathers are available with 1/2”, 3/4” and 1” BSP threads. Industrial gearbox applications may require NPT threads. BSP and NPT are not directly interchangeable without adapters.

Threaded vs Flanged Breathers

• Threaded BSP Connections with 1/2 inch, 3/4 inch and 1 inch
• Threaded NPT Connections with 1/2 inch, 3/4 inch and 1 inch
• 80 mm Flange with 60 mm PCD
• 115 mm Flange with 85 mm PCD

Applications

Replacement & Equivalent Models

• ABB NAK 3.6 Breather Replacement
• Yogya DTO Equivalent
• Mody & Associates DTO Equivalent
• Voltamp Transformer Breather

Frequently Asked Questions

What silica gel breather is suitable for a 12.5 MVA transformer?

For a 12.5 MVA transformer, silica gel breathers with capacities ranging from 4 kg to 6 kg are commonly used. The exact breather size depends on transformer oil volume, conservator size, local humidity conditions and maintenance intervals.

What silica gel breather is recommended for a 5 MVA transformer?

A 1.5 kg to 2 kg silica gel breather such as DTO-3T or DTO-4 is generally suitable for 5 MVA transformers. Final selection should be based on conservator volume and oil content.

How often should silica gel be replaced in a transformer breather?

Silica gel should be replaced or regenerated when the indicating crystals change color completely. In humid environments, replacement may be required every few months, while dry locations may allow longer service intervals.

What is the difference between blue and orange indicating silica gel?

Blue indicating silica gel changes from blue to pink when saturated, while orange indicating silica gel changes from orange to green. Orange silica gel is considered environmentally safer and is widely preferred in modern installations.

Can silica gel breathers be supplied without silica gel filling?

Yes. Transformer breathers can be supplied either fully filled with silica gel or as empty breather assemblies without silica gel. Many utility companies prefer empty breathers for maintenance and stocking purposes.

What is the purpose of the oil cup in a silica gel breather?

The oil cup acts as a secondary barrier against dust, insects and contaminants. Incoming air passes through the oil seal before reaching the silica gel chamber, improving protection for transformer oil.

Can a silica gel breather be used for gearboxes?

Yes. Desiccant breathers are widely used on industrial gearboxes, hydraulic reservoirs, storage tanks and lubrication systems to prevent moisture contamination and extend equipment life.

What thread sizes are available for transformer breathers?

Standard transformer breathers are available with 1/2 inch, 3/4 inch and 1 inch BSP threads. NPT threaded versions can also be supplied for industrial and imported equipment applications.

What is the difference between threaded and flanged breathers?

Threaded breathers are connected directly to the conservator pipe using BSP or NPT threads. Flanged breathers use bolted flange connections and are typically preferred for larger transformers and grid substations.

Can BSP and NPT threads be interchanged?

No. Use an adapter or correct thread specification.

What flange sizes are commonly used for transformer breathers?

Common flange configurations include 80 mm flange diameter with 60 mm PCD and 115 mm flange diameter with 85 mm PCD. Custom flange drilling patterns can also be supplied.

Can silica gel breathers be customized for existing transformers?

Yes. Custom connection sizes, flange drilling patterns, mounting arrangements and silica gel capacities can be manufactured to match existing transformer installations.

What body materials are used in silica gel breathers?

Modern silica gel breathers are manufactured using UV-resistant polycarbonate or acrylic transparent tubes combined with die-cast aluminium top and bottom covers for durability and corrosion resistance.

What is the service life of a transformer silica gel breather?

The breather assembly itself can last for many years with proper maintenance. Only the silica gel and sealing components typically require periodic replacement during routine maintenance.

Can saturated silica gel be regenerated and reused?

Yes. Saturated silica gel can be regenerated by heating at approximately 110°C to 120°C until the original color is restored. After cooling, the silica gel can be reused.

What is the equivalent replacement for ABB NAK 3.6 breather?

Equivalent replacement breathers can be manufactured based on ABB model numbers, drawing references and connection dimensions. Custom replacement solutions are available for ABB and other OEM transformer breathers.

What is the difference between DTO-1 and DTO-2 breathers?

DTO-1 typically contains approximately 250 gm silica gel and is used on smaller distribution transformers. DTO-2 generally contains 500 gm silica gel and is suitable for larger oil capacities and transformer ratings.

Which silica gel breather is suitable for a 3000 litre transformer oil capacity?

Transformers with approximately 3000 litres of oil typically use 1.5 kg to 2 kg silica gel breathers such as DTO-3T or DTO-4 models, depending on environmental conditions and conservator size.

Can transformer breathers be supplied with NPT threads?

Yes. While BSP threads are most common in transformer applications, NPT threaded breathers are available for industrial gearboxes, imported machinery and special customer requirements.

Do silica gel breathers comply with utility and railway specifications?

Breathers can be manufactured to meet utility, industrial and railway specifications, including special painting requirements, stainless steel hardware, vibration-resistant designs and custom documentation.

What industries use silica gel breathers besides transformers?

Silica gel breathers are used in power generation, transmission, steel plants, cement plants, chemical industries, hydraulic systems, storage tanks, marine equipment, locomotives and industrial gearboxes.
