Complete Guide to Silica Gel Breathers (Working, Types, Installation & Maintenance)

A Silica Gel Breather is a critical transformer accessory used to prevent moisture from entering the conservator tank. Excess moisture can reduce transformer oil quality, degrade insulation, and shorten transformer life.

In this complete guide, you will learn everything about silica gel breathers — how they work, features, types, sizing charts, applications, troubleshooting and more. This guide is ideal for electrical engineers, transformer manufacturers, utilities, and maintenance teams.

Contents

• What is a Silica Gel Breather?
• How Does a Silica Gel Breather Work?
• Why Moisture Control is Important in Transformers
• Types of Silica Gel Breathers
• Breather Sizes & Applications
• Technical Features & Construction
• Installation Guide
• Maintenance & Replacement
• Frequently Asked Questions
• Why Buy from Seyon Enterprises?

1. What is a Silica Gel Breather?

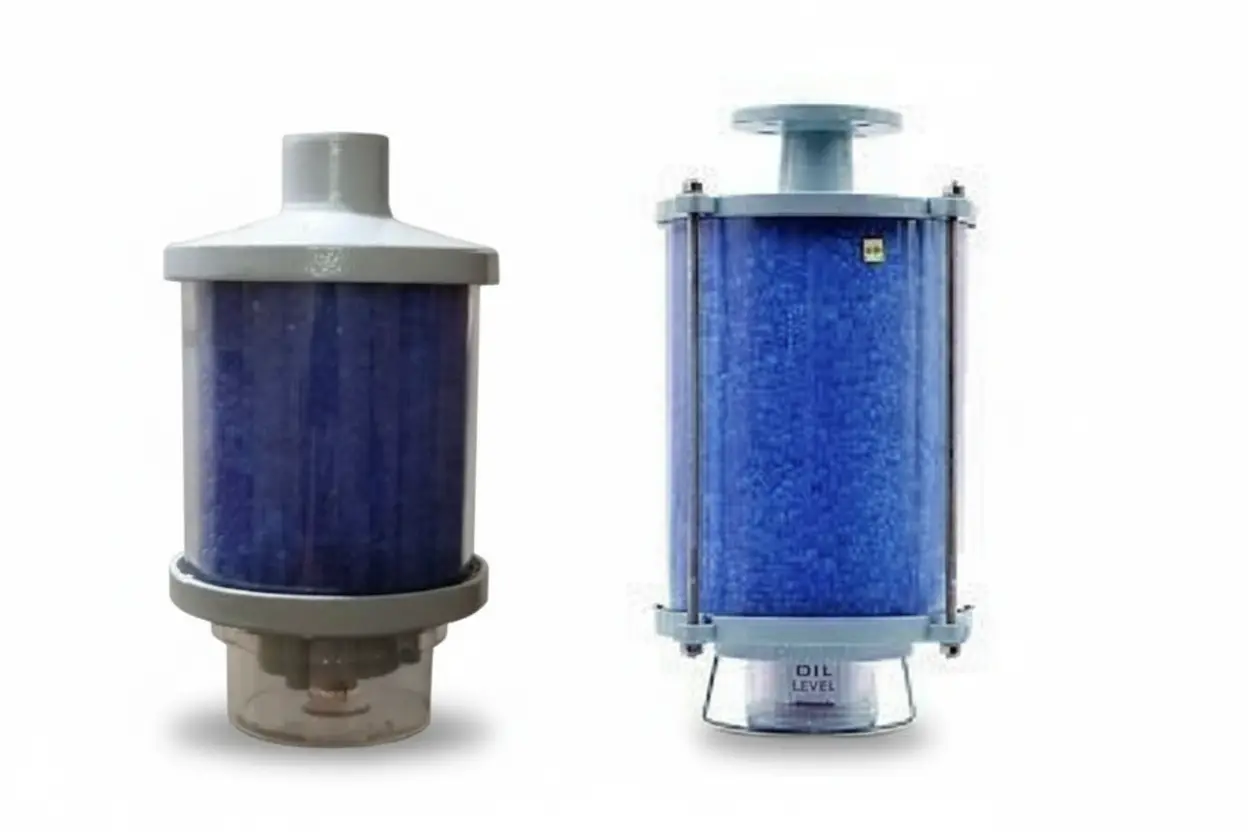

A silica gel breather is a device fitted to a transformer’s conservator tank to absorb moisture from the air entering the transformer. When the transformer breathes during load variations, outside air enters through the breather, where moisture is removed by silica gel beads.

Moisture-free air preserves transformer oil quality and prevents oxidation and insulation failure.

2. How Does a Silica Gel Breather Work?

The working principle is simple:

1. Transformer oil expands and contracts with load & temperature.
2. Air enters the conservator tank during contraction.
3. This air passes through the silica gel breather.
4. Silica gel crystals absorb moisture instantly.
5. Only dry, filtered air enters the transformer.

The silica gel changes colour when saturated:

• Blue → Pink
• Orange → Colorless

3. Why Moisture Control Is Important

Moisture in transformer oil can cause:

• Insulation breakdown
• Lower dielectric strength of oil
• Corrosion inside transformer tank
• Formation of sludge
• Transformer failure or flashover

A silica gel breather ensures moisture does not enter the system, extending transformer life by 30–40%.

4. Types of Silica Gel Breathers

• Threaded Type Breather

Has a BSP threaded connection (½ inch or ¾ inch). Common in distribution transformers.

• Flanged Type Breather

Bolted flange connection — used in large power transformers.

• Oil Cup Breather

Includes an oil reservoir to trap dust and fine moisture.

• Maintenance-Free Breather (Self-indicating)

Uses orange silica gel for ECO, RoHS compliant applications.

5. Sizes & Applications

6. Technical Features & Construction

7. Installation Guide

1. Ensure the breather size matches transformer rating.
2. Fill the oil cup with mineral oil (if applicable).
3. Check that silica gel is fully dry (blue/orange).
4. Mount the breather vertically using the threaded/flange link.
5. Ensure airtight connection to conservator tank.
6. Never install at an angle — vertical alignment is mandatory.

8. Maintenance & Replacement

Silica gel requires replacement when:

• Blue → Pink (fully saturated)
• Orange → Colorless
• Visible moisture inside the chamber
• Oil cup becomes cloudy

Replacement frequency: 6–12 months depending on environment.

9. FAQ — Silica Gel Breather

Q1. What is the purpose of a breather in a transformer?

To remove moisture from the air entering the conservator tank.

Q2. How do I know when silica gel needs replacement?

When the colour changes from blue to pink or orange to white.

Q3. What silica gel is used in breathers?

Blue indicating or orange indicating beads.

Q4. Does the breather need oil?

Only oil-cup type breathers require mineral oil.

10. Why Buy Silica Gel Breathers from Seyon Enterprises?
